Patch Magnet

Description



Patch Magnet is made by flexible magnetic sheet laminated with self adhesive. Unlike hard ferrite magnet which is normally fragile against to shock, flexible magnet is flexible, and uneasy to break and crack. It can be manufactured in proper flexibility and cut into any size with knife or scissors to meet customer’s specific requirement without cracking or loss of magnetic energy.You can easily peel off the individual patch magnet from the big sheet, apply it to the back side of a paper card or other materials and stick it to fridge door, filing cabinet, metal shelf rack, gym locker, white board or any other metal surfaces. In this way, you give your message a better chance of remaining in a place to get notice for a longer time instead of ending up tossed, lost or filed away.

Patch magnet is available in sheet and roll.

Patch magnet roll is easily adapted to any automatic labeling machine to make magnetic postcard ,magnetic leaflet or magnetic direct mail, which has a registration gap between each patch magnet, so that a photoelectric sensor can cue label machines to apply an individual magnet to paper card or other materials.

This product is available in standard thickness ranging from 0.4mm to 0.8mm and widths ranging from 20mm to 120mm, different roll lengths up to 150 meters are possible and will depend upon magnet thickness. Please feel free to contact us about your special requirements, we will have a good solution for you.

Following is some standard size of patch magnet sheet, custom size is also available:

Size of each magnet tab	Size of master piece	Quantity of Magnet Tabs In each master piece	Remarks
20 x 20mm	400 X 200mm	200 pcs of 20 x 20mm	* Magnet thickness is available in 0.5m, 0.6mm, 0.7mm and 0.8mm. * Standard packing:  100 pcs master pieces into a carton box.
20 x 30mm	300 X 200mm	100 pcs of 20 x 30mm
20 x 38mm	304 x 300mm	120 pcs of 20 x 38mm
20 x 40mm	400 X 200mm	100 pcs of 20 x 40mm
20 x 65mm	325 x 300mm	75 pcs of 20 x 65mm
20 x 100mm	300 x 300mm	45 pcs of 20 x 100mm
20 x 120mm	360 X 300mm	45 pcs of 20 x 120mm
30 x 50mm	450 X 150mm	60 pcs of 30 x 50mm
40 x 40mm	400 X 200mm	50 pcs of 40 x 40mm
40 x 50mm	300 X 200mm	30 pcs of 40 x 50mm
50 x 70mm	300 X 280mm	24 pcs of 50 x 70mm

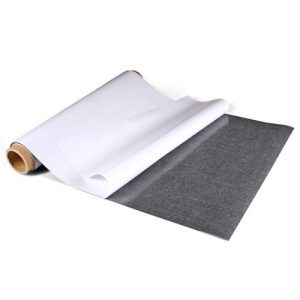

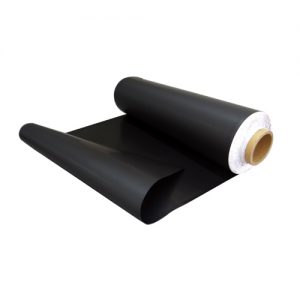

Patch Magnet roll

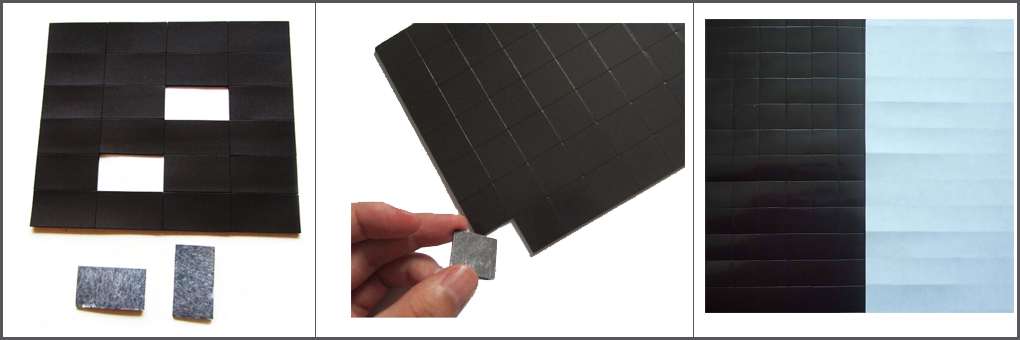

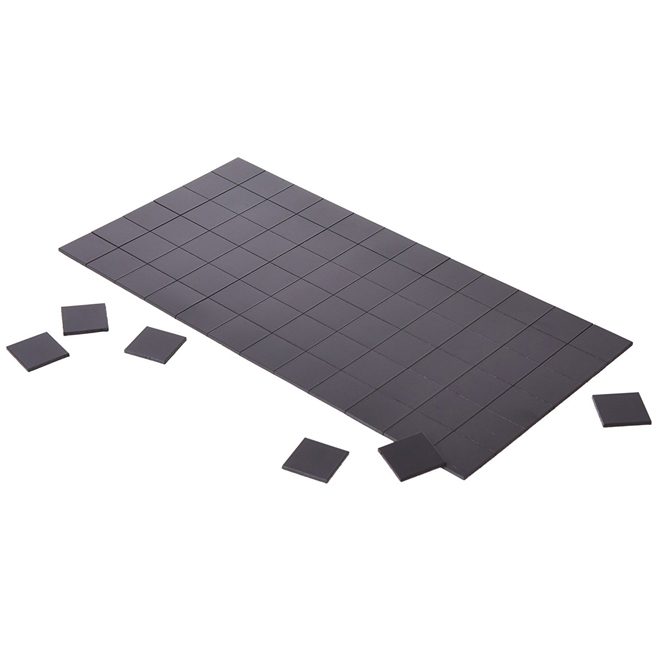

Patch Magnet Sheet
