Plain Magnetic Sheeting

Description

Plain magnetic sheeting without any laminations on both sides,one side is multi poles magnetized,the other side is un-magnetized,un-coated,you can laminate selfadhesive,paper or PVC on the non magnetized side.

Dimension:

• Material is available in isotropic,semi-anisotropic and anisotropic grade

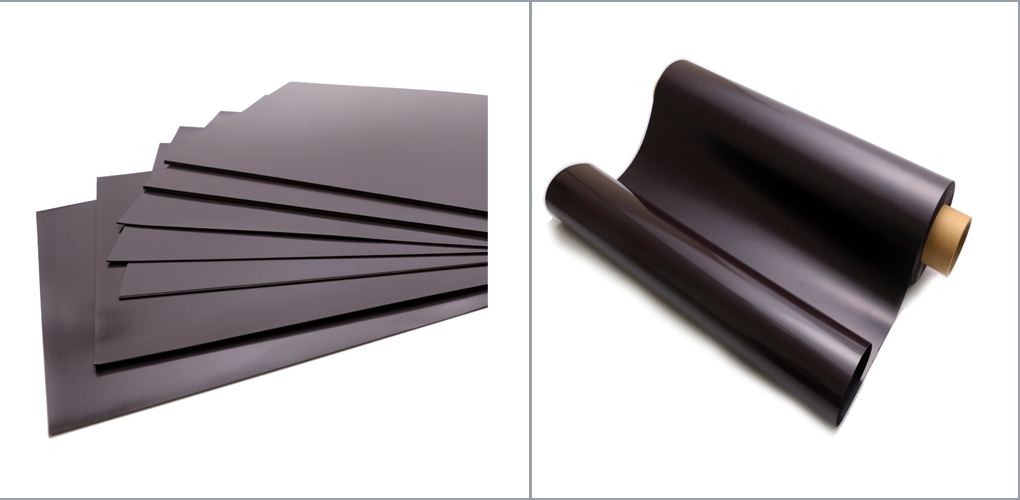

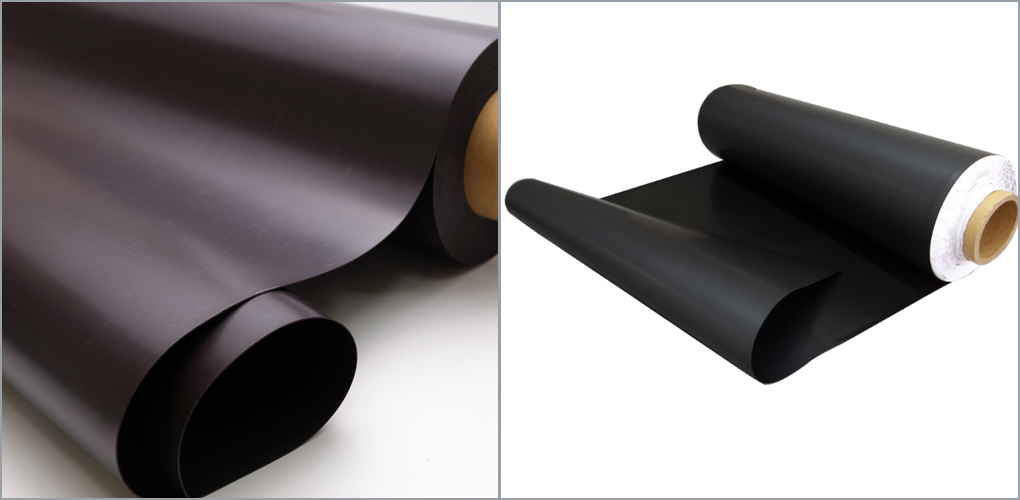

• Material is available in sheets and rolls
• We can die cut the material to any shapes or sizes according to your requirement

Standard &Popular Size

Products	Material	Surface	Dimension			Pull Strength (g/cm2)
			Width(MM)	Length(MM)	Thickness(MM)
Roll	Isotropic	Plain brown	620/1000/1270	30	0.30	11
	Isotropic	Plain brown	620/1000/1270	30	0.40	15
	Isotropic	Plain brown	620/100/1270/1520	30/20	0.50	23
	Isotropic	Plain brown	620/1000/1270	30/15	0.60	32
	Isotropic	Plain brown	620/1000	30/15	0.70	38
	Isotropic	Plain brown	620/1000	30/15	0.75	42
	Isotropic	Plain brown	620/1000	20/10	1.00	55
Roll	Semi-anisotropic	Plain brown	620/1000	30	0.30	18
	Semi-anisotropic	Plain brown	620/1000	30	0.40	33
	Semi-anisotropic	Plain brown	620/1000	30/20	0.50	40
	Semi-anisotropic	Plain brown	620/1000	30/15	0.60	45
	Semi-anisotropic	Plain brown	620/1000	30/15	0.75	66
	Semi-anisotropic	Plain brown	620/1000	30/15	0.80	75
	Semi-anisotropic	Plain brown	620/1000	20/10	1.00	86
Roll	Anisotropic	Plain brown	620/1000	30	0.30	18
	Anisotropic	Plain brown	620/1000	30	0.40	33
	Anisotropic	Plain brown	620/1000	30/20	0.50	40
	Anisotropic	Plain brown	620/1000	30/15	0.60	45
	Anisotropic	Plain brown	620/1000	30/15	0.75	66
	Anisotropic	Plain brown	620/1000	30/15	0.80	75
	Anisotropic	Plain brown	620/1000	20/10	1.00	86

*Thickness is from 0.3mm-1mm;Width is from 10mm-1520mm;Custom sizes are also available.*

Physical Properties:

1.Working temperature: -40-80℃
2.Hardness:90A,50D
3.Multi-pole spacing: 12.7 poles per inch

Outstanding Features:

1.Easy to cut, bent, twisted, coiled, or be machined into almost any shape, without damaging its property.

2. Safe for people, especially children.

3. Custom width and length available.



Application:

1. White boards;

2. Magnetic dartboards;

3.Educational products (like magnetic books, magnetic puzzles and chess boards, etc.)

4.Magnetic toys;

5.Can be used as wall paper by laminating with PVC or othe materials and printing with beatiful image for decorating restaurants,businesses,office and home according to their mood,holiday,or season.
