Magnetic Compound

Type:  Permanent

Composite:  Rubber Magnet

Shape:  Compound

Hardness:   Customized









Category:

Description

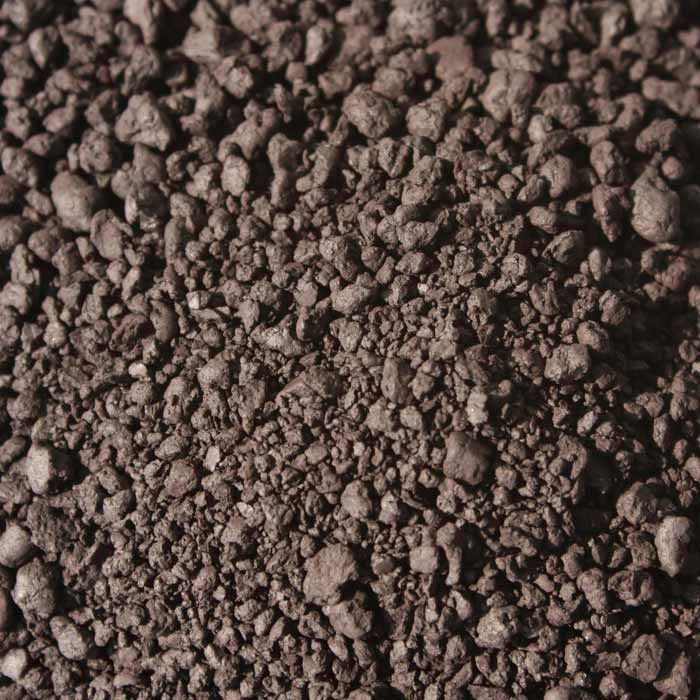

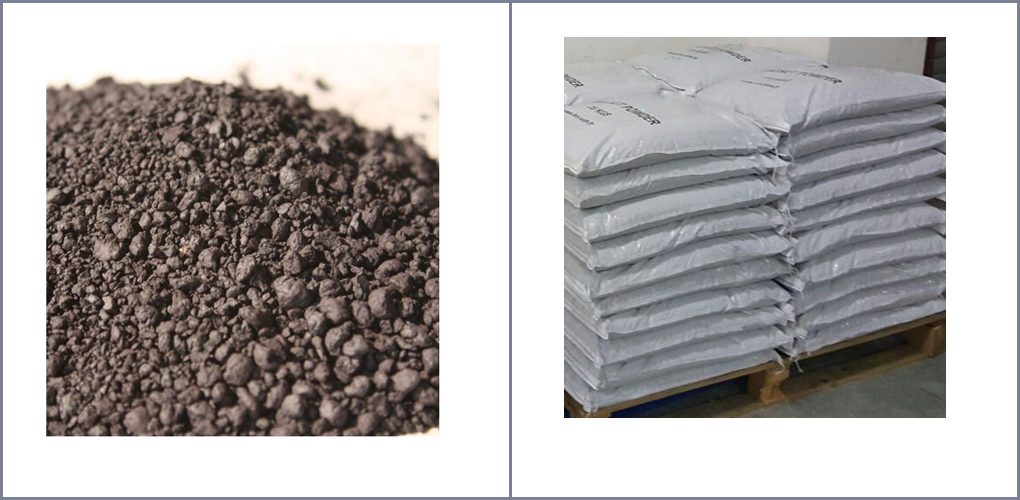

Magnetic compound consist of 90% bonded magnetic ferrite powder and around 10% CPE and other materials. We supply barium ferrite magnetic compound and strontium ferrite magnetic compound. All the additives have been put into the magnetic compound. The granulated magnetic compound for extrusion can be fed into the extruder directly to extrude magnetic strip.



Usage: To be used for making different kinds of flexible magnetic strip and sheets by extrusion or calendaring.
Material: Strontium or Barium
Hardness: Customized
Property: Isotropic, Semi-anisotropic and anisotropic
Storage: 1. In general,long storage times in a humid and got climate may

results brittleness of the magnetic strip.

2. The storage time should not exceed: 12 months at a storage temperature of up to 25 /50%

relative humidity, 6 months at a storage temperature of up to 40 /50% relative humidity.



PERFORMANCE OF PERMANENT MAGNETIC POWDER

ISOTROPIC BONDED FERRITE POWDER
TYPE INGREDIENTS Remanence
Br(mT)
Coercive Force
HcB (kA/m)
Coercive Force
Hcj (kA/m)
Max.Energy Product
(BH)max (kJ/m3)
GRANULE
μm
MOISTURE
(%)
DENSITY
g/cm3)
Ba.ferrite powder BaO.6Fe2O3 170-180 90-100 135-155 4.6-5.0 1.4-1.5 ≤0.3 3.6-3.8
195-215 103-113 140-160 6.3-7.3 1.4-1.5 ≤0.3 3.6-3.8
Sr.ferrite powder SrO.6Fe2O3 204-220 100-110 130-150 5.9-6.9 1.4-1.5 ≤0.3 3.6-3.8
212-228 103-113 130-150 6.8-7.8 1.4-1.5 ≤0.3 3.6-3.8
222-238 105-115 130-150 7.8-8.8 1.4-1.5 ≤0.3 3.6-3.8
